Kinematics and Dynamics Final Project
ME 3011 // Completed October 2019
SUMMARY
Focuses on graphical and analytical solutions to kinematic and dynamic motion problems. A focus placed on mechanical elements such as linkages, gears, cams, etc. Additionally, modeling and characteristic phenomena of one degree-of-freedom mechanical vibrations found in machines and structures are explored.

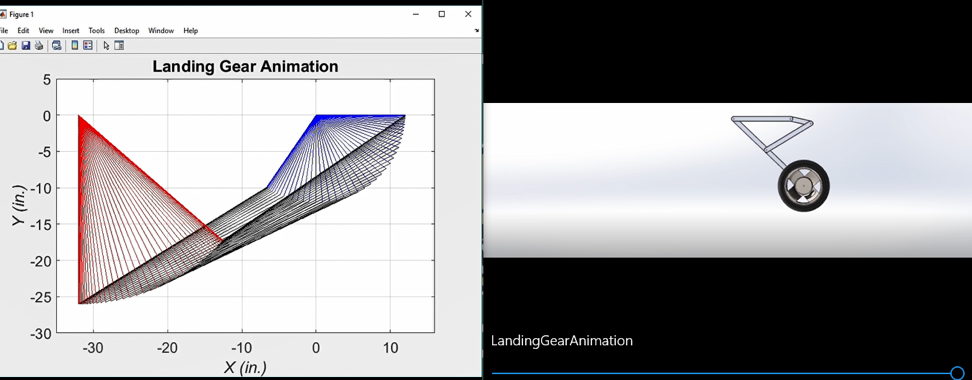

A final project is assigned to be a comprehensive review and students can decide their mechanism of student individually. Given my interest in aerospace I chose to examine landing gear from an airplane. MATLAB is used frequently to model this four-bar mechanism and is used as a tool to develop comprehensive conclusions on its dynamic response. The full range of motion render compared to a SolidWorks Model is shown below:

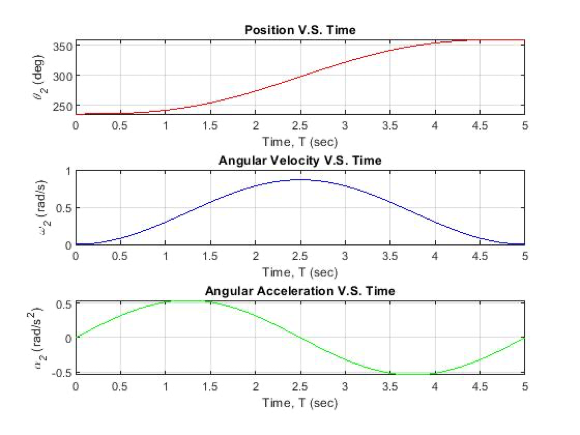

The key conclusions are the angular position, velocity, and acceleration of the input link over time.

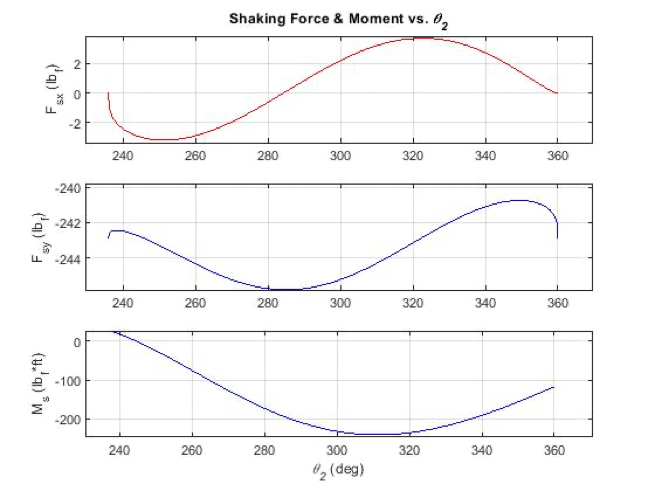

The shaking force and shaking moment depending on the input angle:
The complete report can be found here with only minor revisions from its original submission in Fall 2019 for clarification purposes:
